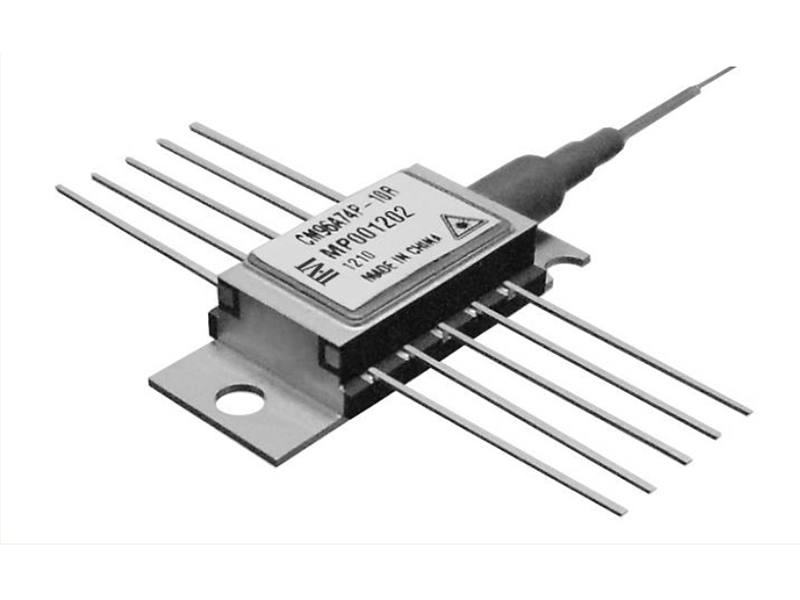

Cooled 10pin butterfly 980nm Pump Laser Module
These lasers are designed as pump sources for erbium doped fiber amplifier (EDFA) applications. Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature.
产品型号CM96Z***-7*
波长974nm 976nm
功率up to 600mW kink free
尾纤Hi1060
These lasers are designed as pump sources for erbium doped fiber amplifier (EDFA) applications. Processes and techniques of coupling the fiber to the laser allow high output powers that are very stable with both time and temperature.
The CM96Z***-7* series pump module utilizes a fiber Bragg grating design for enhanced wavelength and power
stability performance. This product has been designed to ensure superior wavelength locking over drive current,
temperature and optical feedback changes.
Devices are available with kink free output powers to 600mW.
Features
- High output power, up to 600mW kink free
- Single-mode fiber pigtail
- Fiber Bragg grating stabilization for wavelength locking over the entire operating conditions
- Small form factor, hermetically sealed 10 pin minibutterfly package
- Pin-out compatibility with 14 pin BTF package
- Internal thermoelectric heatpump and monitor photodiode
- Telcordia GR-468-CORE compliant
- Field-proven high reliability
- RoHS compliant
Applications
- Low noise EDFAs
- Dense wavelength division multiplexing (DWDM) EDFAs
- CATV Applications
